Portable Explosimeter - gaZguard EX

PPS Make Portable Explosimeter - gaZguard EX

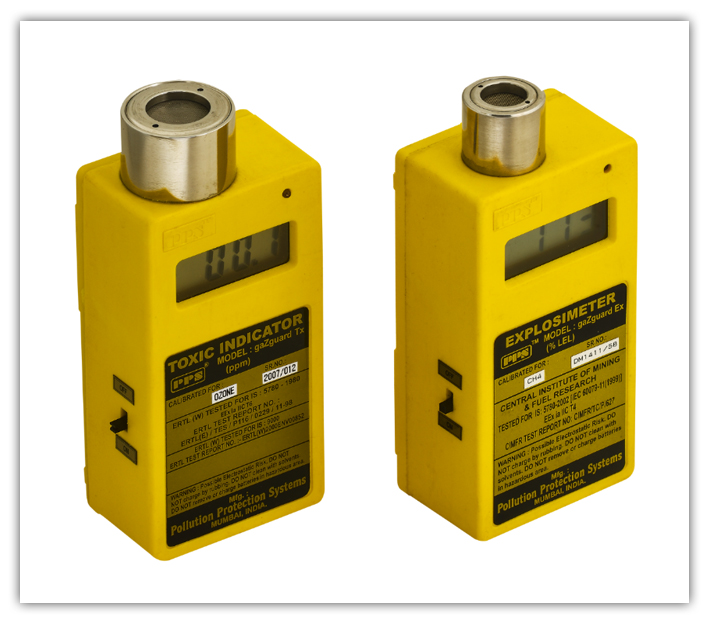

gaZguard EX Portable Explosive Gas Detector
gaZguard EX Portable Explosive Gas Detector

TECHNICAL SPECIFIACTION :

Dimension : 130mm x 67mm (4.5" x 2.6" x 1.6")
 Weight  : 450 gms. (With Batteries)
 Accessories : Standard : - Carring Case Batt. Charger
Optional: - Aspirator adaptor or Remote Sensor with Cable of 3 Mtrs.
 Measurement Range : 0 – 100% LEL
 Display  : Liquid Crystal Display (LCD)
 Standard Alarm Levels  : 40% LEL
 Optional Alarm Levels : NOT AVAILABLE
 Alarm Indication : Pulsating red LED with audible, 90 db at 1 Meter
 Battery   :  Standard : Rechargeable 4 x AA cells
 Optional : Disposable
 Battery Life  : 4 hrs. Continuous
 Oper. Temperature : -10 deg C to 50 deg C. (14 deg F to 122 deg F)
 Humidity  : 0 – 95% RH Non – Condensing
 Resolution :  1%
 Response Time : T90 < 15 Sec.
 Setting : Zero/ Span accessible from outside
Sensor Type : CATALYTIC TYPE
 Sensor Life : 4 to 5 years (in fresh air)

APPROVALS :


  • Tested for Intrinsically safe as per IS 5780-2002{IEC-60079-11(1999)}
  • Tested for Performance as per IS 9000 (ERTL WEST)
  • Tested by CENTRAL INSTITUTE OF MINING & FUEL REASERCH LAB.(CMRI)
  • Approved for EEx ia IIC T4/T6
