gaZguard TX HZ

APPROVALS :

  • Tested for Intrinsically safe as per IS 5780-2002{IEC-60079-11(1999)}
  • Tested for Performance as per IS 9000 (ERTL WEST)
  • Tested by CENTRAL INSTITUTE OF MINING & FUEL REASERCH LAB.(CMRI)
  • Approved for EEx ia IIC T4/T6
  • BIS Certificate No: - CM / L – 7449687 as per IS: 5780
  • CCE Approval No: -A/P/HQ/MH/104/518(P55545)

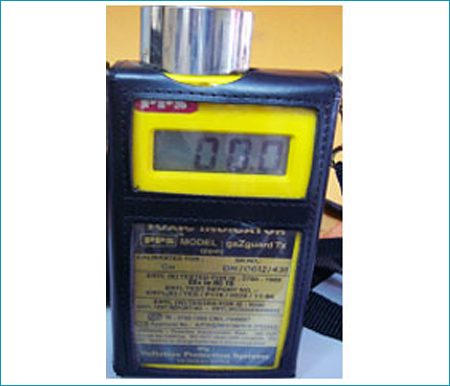

PPS make Portable Hydrazine Detector (N2H4)

Dimension : 130mm x 67mm (4.5” x 2.6” x 1.6”)
 Weight  : 450 gms. (With Batteries)
 Accessories : Standard: - Carring Case Batt. Charger
Optional: - Aspirator adaptor
 Measurement Range : 0 – 100 ppm
 Display  : Liquid Crystal Display (LCD)
 Standard Alarm Levels  : At TLV
 Optional Alarm Levels : As per specification
 Alarm Indication : Pulsating / Continuous red LED with audible, 90 db at 1 Meter
 Battery   :  Standard : Rechargeable 4 x AA cells
 Optional :Disposable
 Battery Life  :  12 – 15 hrs. Continuous
 Oper. Temperature : -10 deg C to 50 deg C. (14 deg F to 122 deg F)
 Accuracy  : +/- 10 of Test Gas Concentration
 Humidity  : 0 – 95% RH Non - Condensing
Accuracy  : +/- 10 of Test Gas Concentration
 Resolution : 1ppm
 Response Time : T90 < 30 Sec.
 Setting : Zero/ Span accessible from outside
Sensor Type : Electrochemical
 Sensor Life : Max. 2 years (in fresh air)
