Gazguard Tx Hcn, Portable Hydrogen Cyanide Detector, Portable Hydrogen Cyanide Detector Manufacturer, Mumbai, India



gaZguard TX HCN

 gas-leak-detection-&-monitoring-systems

APPROVALS :

Tested for Intrinsically safe as per IS 5780-2002{IEC-60079-11(1999)}
Tested for Performance as per IS 9000 (ERTL WEST)
Tested by CENTRAL INSTITUTE OF MINING & FUEL REASERCH LAB.(CMRI)
Approved for EEx ia IIC T4/T6
  BIS Certificate No: - CM / L – 7449687 as per IS: 5780
CCE Approval No: -A/P/HQ/MH/104/518(P55545)


gazgaurd-tx HCN

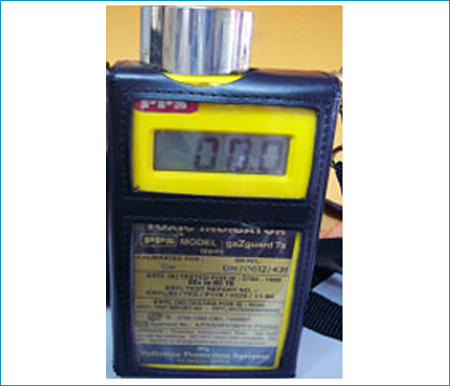

PPS make Portable Hydrogen Cyanide Detector (HCN)



      TECHNICAL SPECIFICATION :
  Dimension :   130mm x 67mm (4.5” x 2.6” x 1.6”)
  Weight  :    450 gms. (With Batteries)
  Accessories :    Standard: - Carring Case Batt. Charger
   Optional: - Aspirator adaptor
  Measurement  Range :    0 – 20/30 ppm
  Display  :    Liquid Crystal Display (LCD)
  Standard Alarm Levels  :    At TLV
  Optional Alarm Levels :    As per specification
  Alarm Indication :    Pulsating / Continuous red LED with audible, 90 db at 1 Meter
  Battery   :    Standard: Rechargeable 4 x AA cells
   Optional: Disposable
  Battery Life  :   12 – 15 hrs. Continuous
  Oper. Temperature :  -10 deg C to 50 deg C. (14 deg F to 122 deg F)
  Humidity  :   0 – 95% RH Non - Condensing
  Accuracy      +/- 10 of Test Gas Concentration
  Resolution :    1ppm
  Response Time :    T90 < 30 Sec.
  Setting :   Zero/ Span accessible from outside
  Sensor Type :   Electrochemical
  Sensor Life :  Max. 2 years (in fresh air)
