gaZguard TX FD

 gas-leak-detection-&-monitoring-systems

APPROVALS :

Tested for Intrinsically safe as per IS 5780-2002{IEC-60079-11(1999)}
Tested for Performance as per IS 9000 (ERTL WEST)
Tested by CENTRAL INSTITUTE OF MINING & FUEL REASERCH LAB.(CMRI)
  Approved for EEx ia IIC T4/T6
BIS Certificate No: - CM / L – 7449687 as per IS: 5780
CCE Approval No: -A/P/HQ/MH/104/518(P55545)

gazgaurd-tx FD

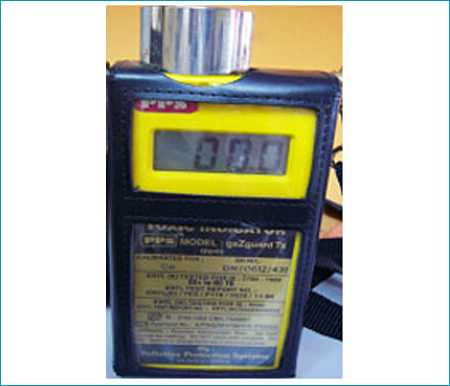

PPS make Portable Formaldehyde Detector (FD)

      TECHNICAL SPECIFICATION :
  Dimension :    130mm x 67mm (4.5” x 2.6” x 1.6”)
  Weight  :     450 gms. (With Batteries)
  Accessories :     Standard: - Carring Case Batt. Charger
    Optional: - Aspirator adaptor
  Measurement  Range :     0 – 20 ppm
  Display  :     Liquid Crystal Display (LCD)
  Standard Alarm Levels  :     At TLV
  Optional Alarm Levels :     As per specification
  Alarm Indication :     Pulsating / Continuous red LED with audible, 90 db at 1 Meter
  Battery   :     Standard: Rechargeable 4 x AA cells
    Optional: Disposable
  Battery Life  :    12 – 15 hrs. Continuous
  Oper. Temperature :   -10 deg C to 50 deg C. (14 deg F to 122 deg F)
  Humidity  :     0 – 95% RH Non - Condensing
  Accuracy      +/- 10 of Test Gas Concentration
  Resolution :    1ppm
  Response Time :    T90 < 60 Sec.
  Setting :   Zero/ Span accessible from outside
  Sensor Type :   Electrochemical
  Sensor Life :  Max. 2 years (in fresh air)
